3D Inspection Graph of High Density Magnetic Bar

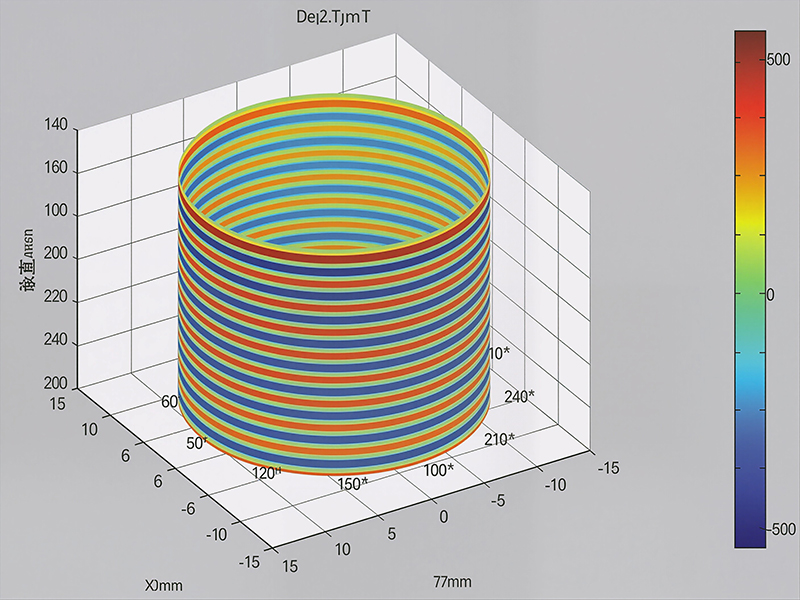

X-Direction magnetic inductionintensity distribution |

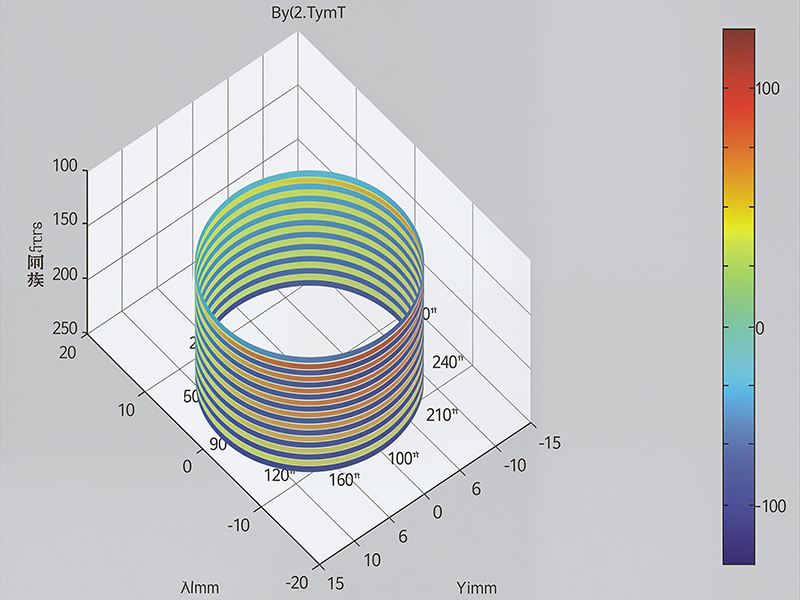

Y-Direction magnetic inductionintensity distribution |

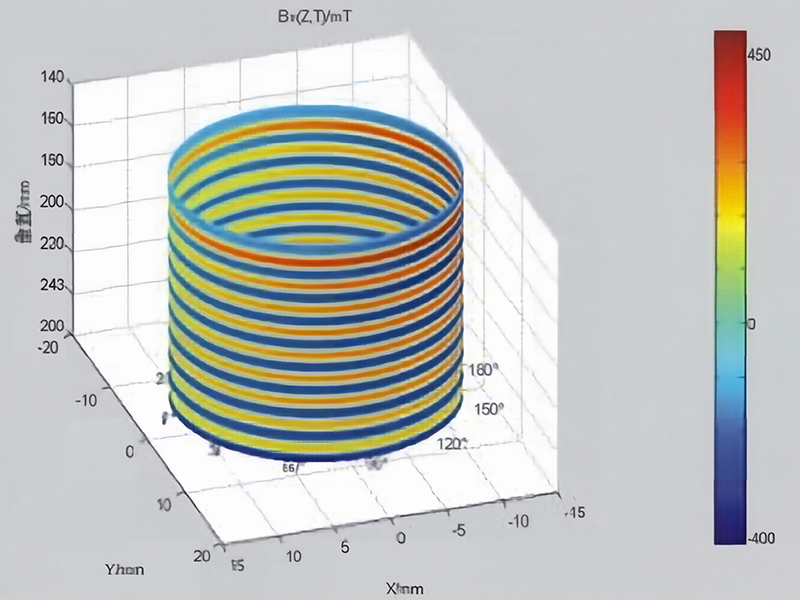

Z-Direction magnetic inductionintensity distribution |
Application
This product with functions of removing iron powder, and magnetic substance from dry powder materialscan applied in a variety of industries; ceramic, mining, chemical, electronic, new energy lithium battery material and food industries.. .Etc.
Product specification
Ф32、Ф35、Ф63 、Ф019、Ф25、(Unit: mm)
Magnetic field strength
3000GS - 12000GS
Surface treatment
The surface of sand blasting, polishing, spray
Features
● It uses rare earth or ferric oxide permanent-magnet material as magnetic source, whose magnetic attractionis 5 times more than that of ordinary permanent-magnetic materials; simple in structure and long usage life.
● Product length and specification is available to be changed at willin accordance with the requirements of customers.
If you need to work in environments with high temperature to be separately specified!
