Application
The product is widely used to remove ferrous powder and fine magnetic substance from ceramic, glass, plastics chemical, food, refractories, abrasives industries.. etc.
Features

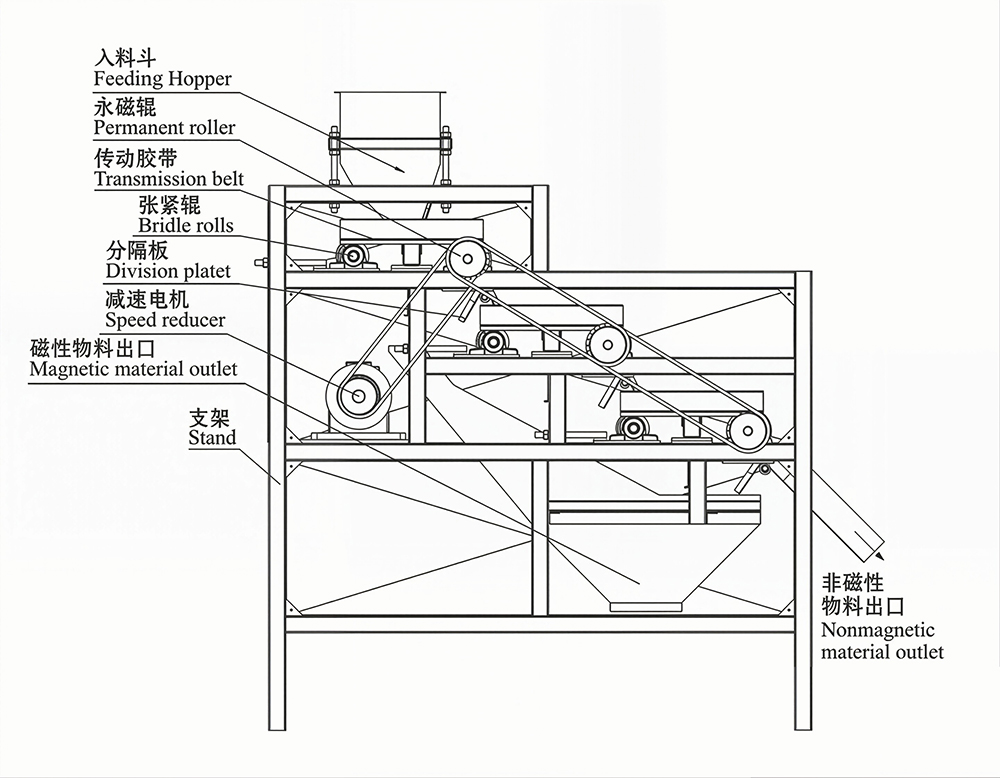

● The machine is consists of permanent magnetic roller, bridle rolls, transmission belt, division plate and feeding hopper. Material evenly enter transmission belt from the adjustable feeding hopper, then be conveyed toseparating magnetic rollers, the nonmagnetic material will flow in parabolic path to nonmagnetic product hopper under the composite action of the centrifugal force and gravity, the magnetic material will be adsorbedon the transmission belt that in separating magnetic roller area. With the transmission belt running, the magnetic material will enter magnetic product hopper, so as to achieve the purpose of separation.
● The separating magnetic roller is adopted the neodymium iron boron permanent magnets: the magnetic field ofroller surface is no lower than 13000GS, the magnetic field of transmission belt surface is no lower than 10000Gs.
● Separating magnetic roller is not contact to the material, no erosion, low demagnetization rate.
● It can be combined into multi-layer type machine according to the actual need, and separate in multileveloperation, compact structure, easy installation and maintenance.
