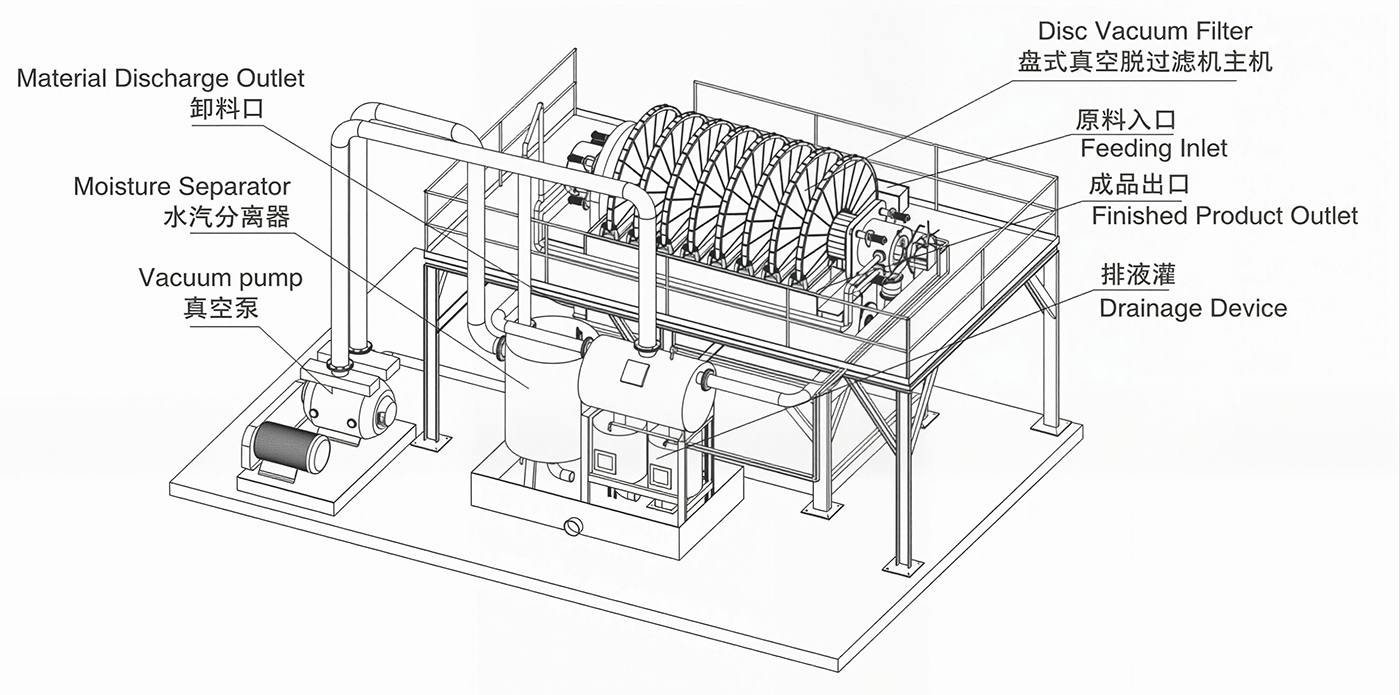

General structure as below picture
|
|
|
Introduction of XYT Disc vacuum filter
XYT Disc vacuum filter is a equipment for Solid-Liquid Separation of slurry by utilizing vacuum as driving force.The Machine mainly consists of Dispenser-head, Bearing, Loading and stripper mechanism, Filtering plate, SpindleAgitating device, Cell, Mine feeder, Main transmission shaft, Centralized lubrication system and so on. Advantage:optimized design of high metal mine density, high deposition velocity and high viscosity, rugged construction, Filteringplate smooth running, automatic variable speed stirring, good sealing reliability preventing slurry leaking, filter fanmaking of high-strength eng -ineering plastics contributes big porosity, high-strength nylon monofilament filter fabricwith smooth surface brings high handing efficiency, long service life, all above advantages ensure ore mineral win excellent figure of merit in dehydration.

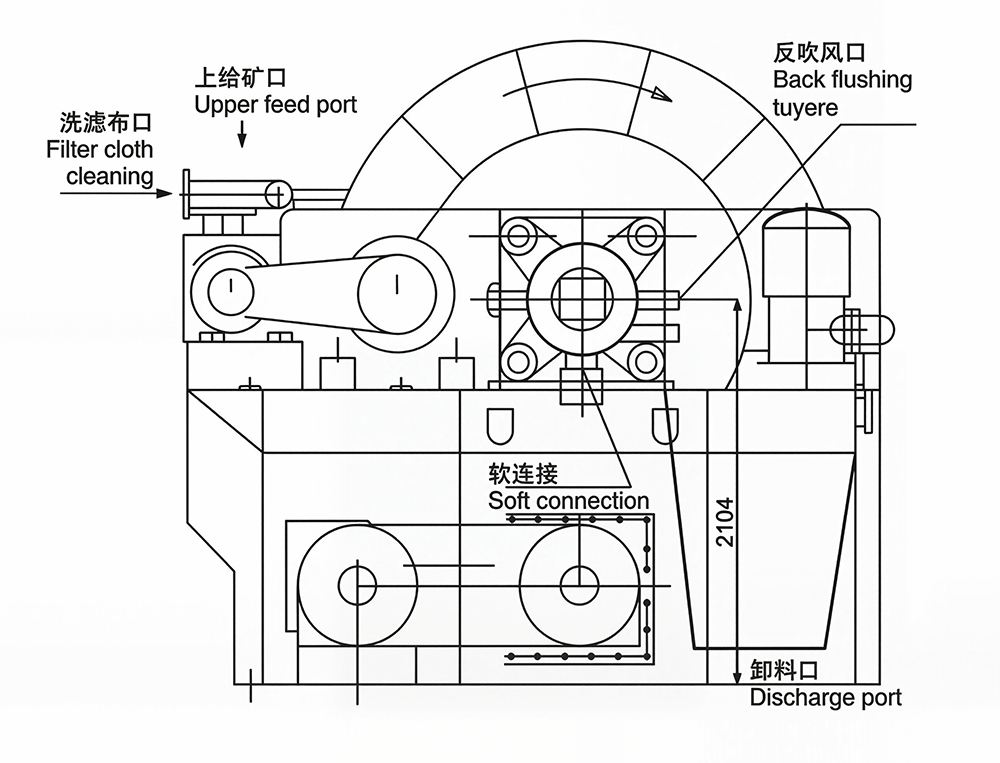

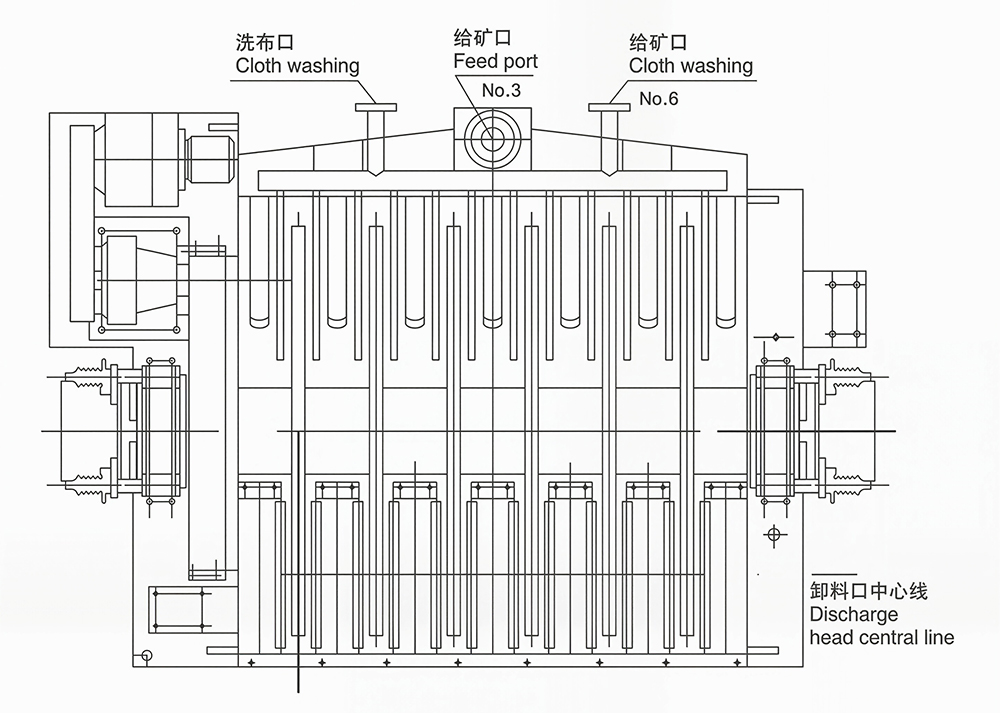

General assembly drawing

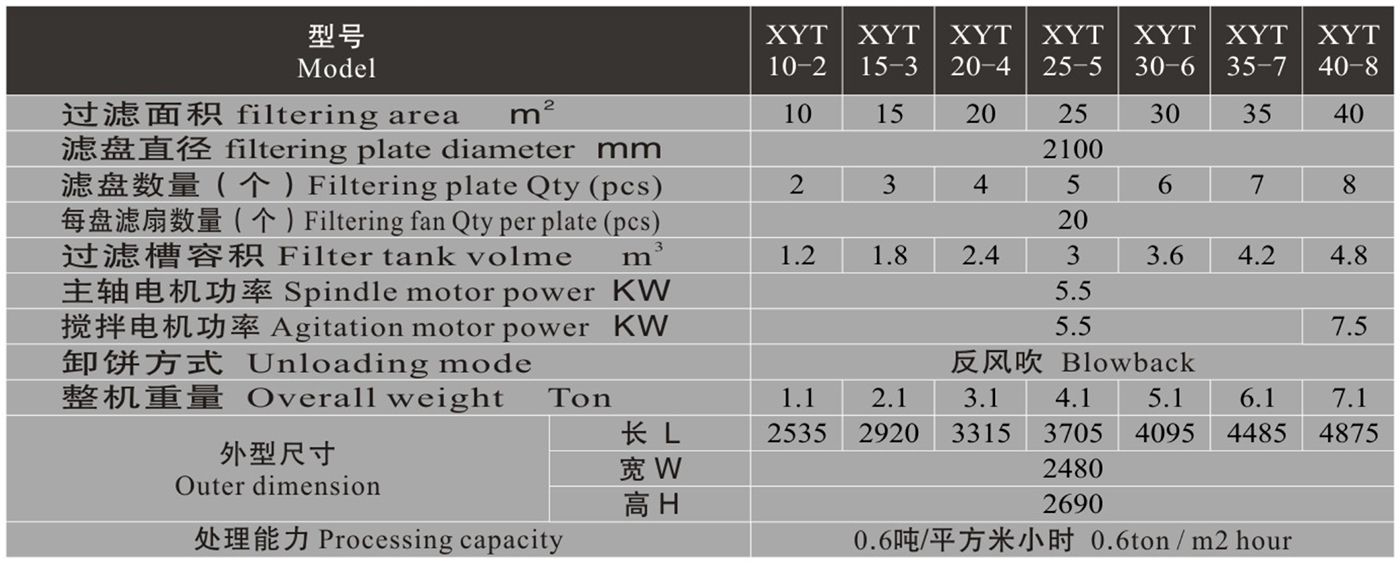

Technical Parameter of XYT Disc vacuum filter
Remark:
1：2100mm plate diameter 5㎡ / plate.
2：processing capability depends on material property, concentration, particle size and beneficiation process.
