XY-1000C-Ultrasonic vibration screening filter
Application
This product, with functions of producing and grading much super tiny powder, tiny powder, specialmaterials and others, can be applied in a variety of settings: food, medicine, chemical, grinding compound,ceramic, mining, pigment, metallurgical and electronic new energy industries...etc
Features
●It truly solves the problem: difficult to sieve due to static electricity, gathering and strong
adsorption...etc:
●The screen net has function of cleaning itself with no block over sieve holes and no attenuation of efficiency in sieving.
Principle of work
Ultrasonic vibration screening filter is a new product that combines ultrasonic generatorand vibrating sieve. The principle is: it converts regular power into 35KHZ high-frequencyelectrical energy (the highest in China is 25KHZ) Firstly; then the 35KHZ electrical energyconverts into mechanical energy with the use of supersonic oscillator, which is installed onscreen frame. It make the surface of the screen produce supersonic vibrations that are invisibleto the naked eye and keeps materials in a suspended state on the screen surface all along;thus it can achieve aims of screening effectively and cleaning screen, easy in screening super-tiny powder.

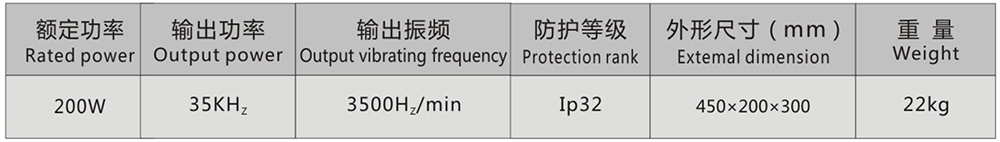

Parameters
