Application
This wet permanent magnetic separator is come out to solve the problem of small magnetismcontamination, difficulty of iron removal, high failure. This new magnetic separator has function oflower power consumption, lower water consumption, good separation effect, automatic iron remove,working time adjustable, lower failure, big production capacity. It is now widely used in mining,non-metallic minerals, ceramic, chemical electronic,new energy lithium battery material industry magnetic separation in slurry or liquid form.
Features
● High gradient magnetic field: the high magnetic field is up to 18000GS by using the good magnetic medium, this machine can remove over 95% of the ferromagnetism materials in over 200 mesh particle separation.
● Big in capacity: this machine can produce over 50 ton per hour in slurry form.
● Low energy consumption: this machine consumes 0.1KW per hour, water usage is lower than 2m' per hour.
● Countercurrent type is used for remove iron, we adopt return flow pipe to make best use of raw material.
● Longer lifetime: use high performance permanent grate, the annual demagnetization rate is less th an 0.05%
● The visible control panel is employed here, the time for removal process is adjustable

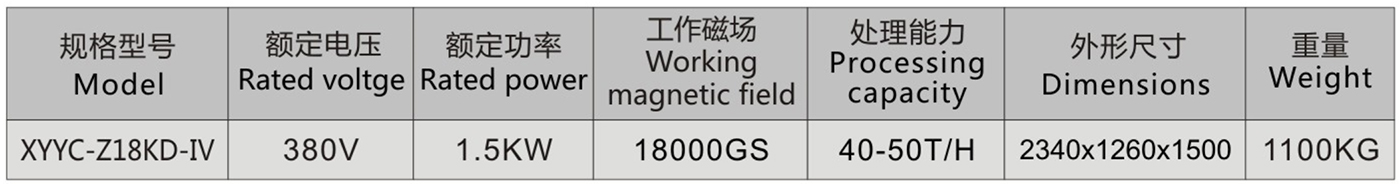

Technical parameters
Note: There are difference in processing capacity between ore pulp and dry ore, the following indicators are for reference only, to be confirmed in accordance with the actual materials.
