Application
Applicable to remove weakly magnetic substances from the pulp of non-metallic minerals industry,especially have a demonstrable effect for mica, iron oxide, titanium and other weakly magnetic substances difficult to separate.
Features
● Lower energy consumption, high magnetic field gradient, well-proportioned magnetic fields, and better iron removal result ;
● High gradient magnetic field ensures excellent ability of iron removal.
● Adopt induction coil made of copper tubing with strong antioxidation power, good electricalconductivity, directly cooling internal water with high Stability, longer life span.
● Automatic operation, no manual work needed. Conveniently and drastically to remove iron.
● Reasonable structure design makes material evenly feeding in.Magnetic gradient is from weak tostrong, magnetic substance shall be absorbed thoroughly.Long saturation time and high processingcapacity.
● Magnetic medium is adopted the high magnetic conductive material and high saturation magnetic flux.No magnetic residue when power of magnetic coil is cut off, convenient for iron removal.

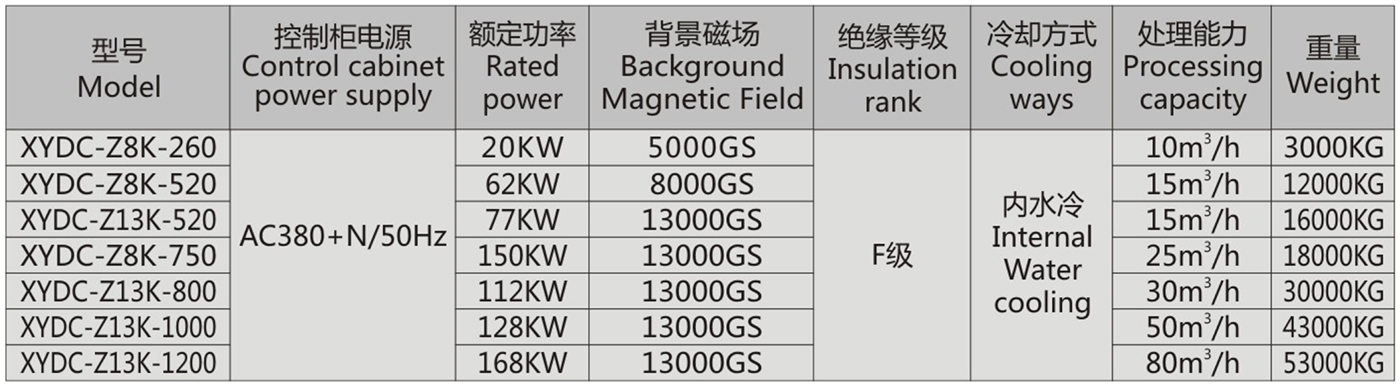

Technical parameters

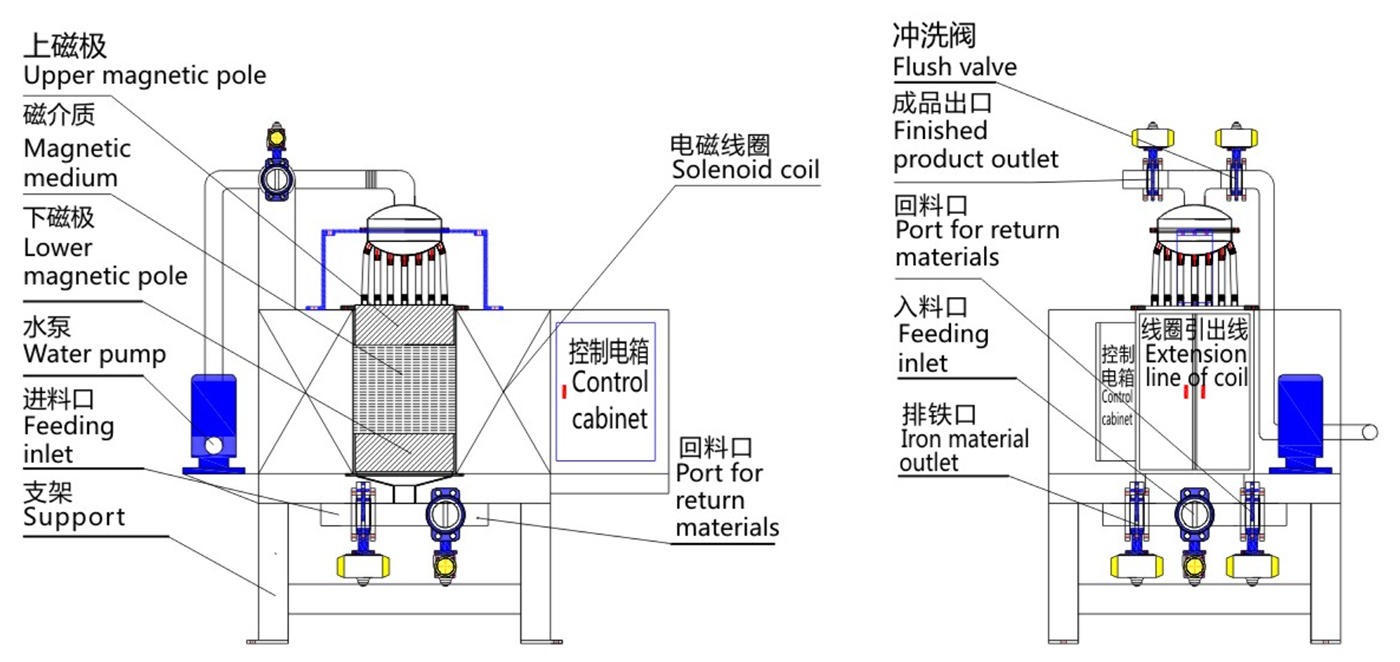

Principle diagram
