PNEUMATIC CONVEYING AND APPLICATION

Xing-Yuan Machinery devote to developing transportation system of Bulk-materials,especially powdery materials.

According to the difference of transportation equipment,transporting mode can be classified into 3 groups: pneumatic conveying machinery conveying and container conveying.

1. Pneumatic conveying.flexible layout airtight conveying, easy maintenance, energy saving.high automation,constant material level.

2. Machinery conveying big transportation capacity,simple working principle,open conveying, heay air pollution,high maintenance cost.

3. Container conveying:simple working principle,easy operation,easy to dean,low automation,large land occupation.

At recent years,Pneumatic conveying is widely used in Pharmaceutical,Foods and Chemical industry in the world with its outstanding feature: high efficiency, low energy consumption,small land occupation,low cost,easy to connect and control.

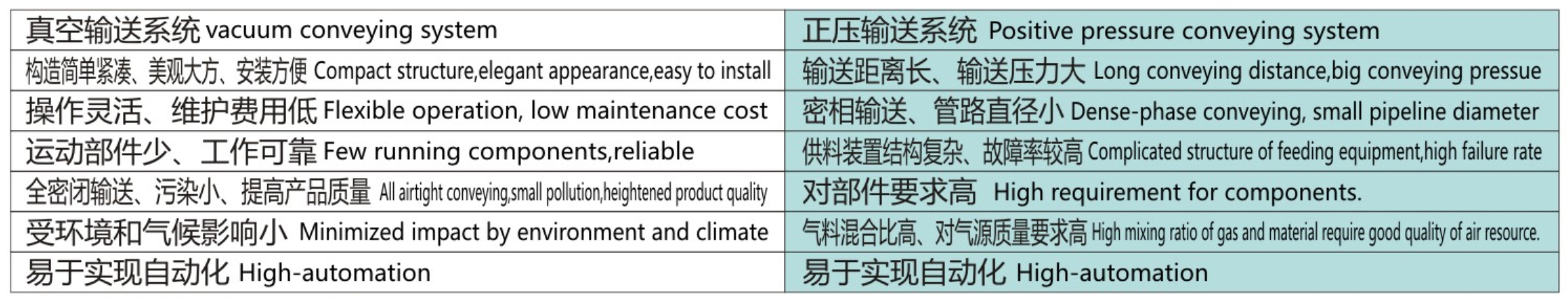

Pneumatic conveying is classified into vacuum system and positive pressure system, feature as below:

CLASSIFICATION OF VACUUM CONVEYING MATERIALS

Vacuum Conveying system is a kind of Pneumatic conveying. It is another conveying type relativeto positive-pressure conveying, also named negative-pressure conveying. Material is transferred with theusage of the Vacuum principle that material flow from one side to another side in the inclosed system.

CONVEYINGPRINCIPLE OF VACUUM

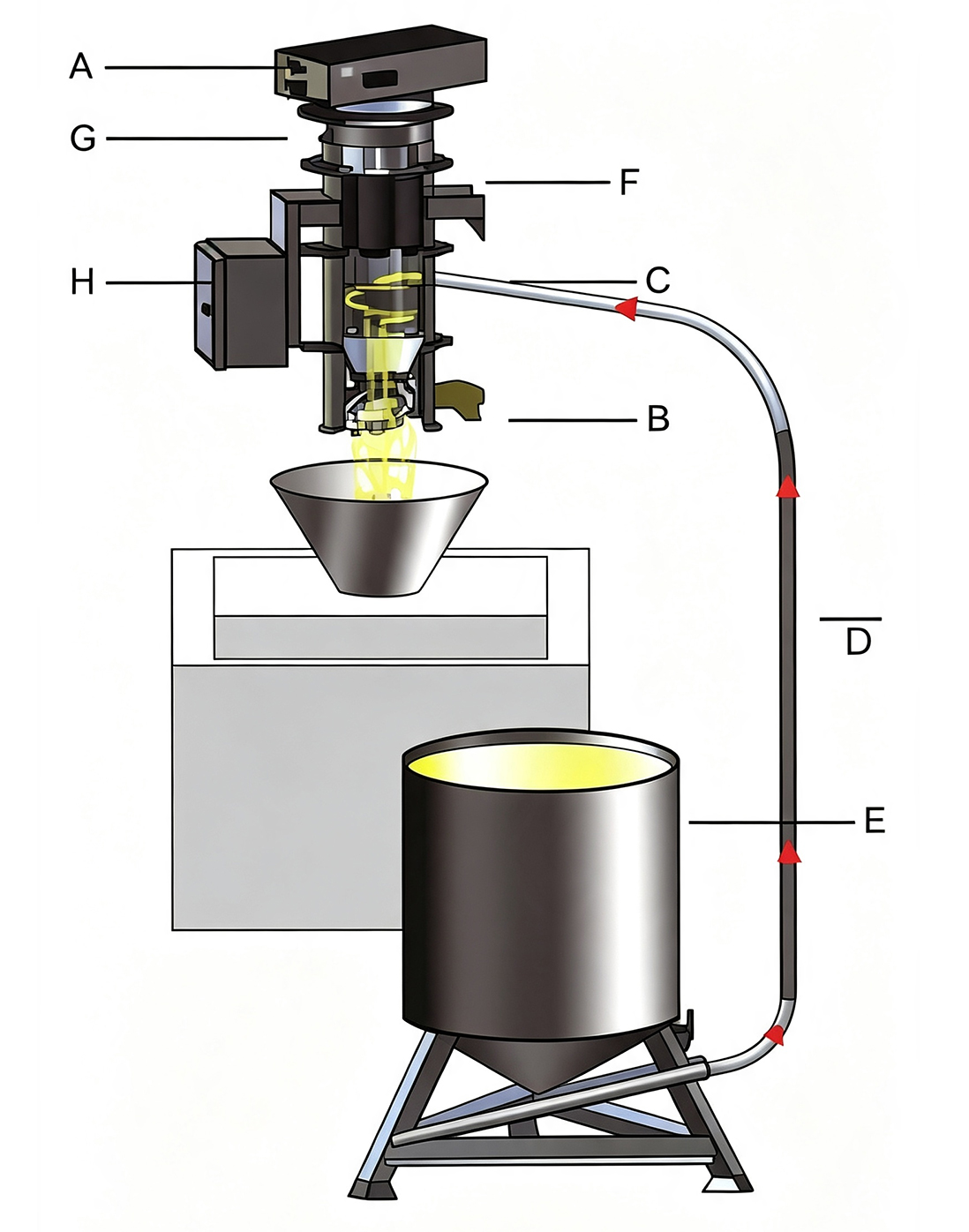

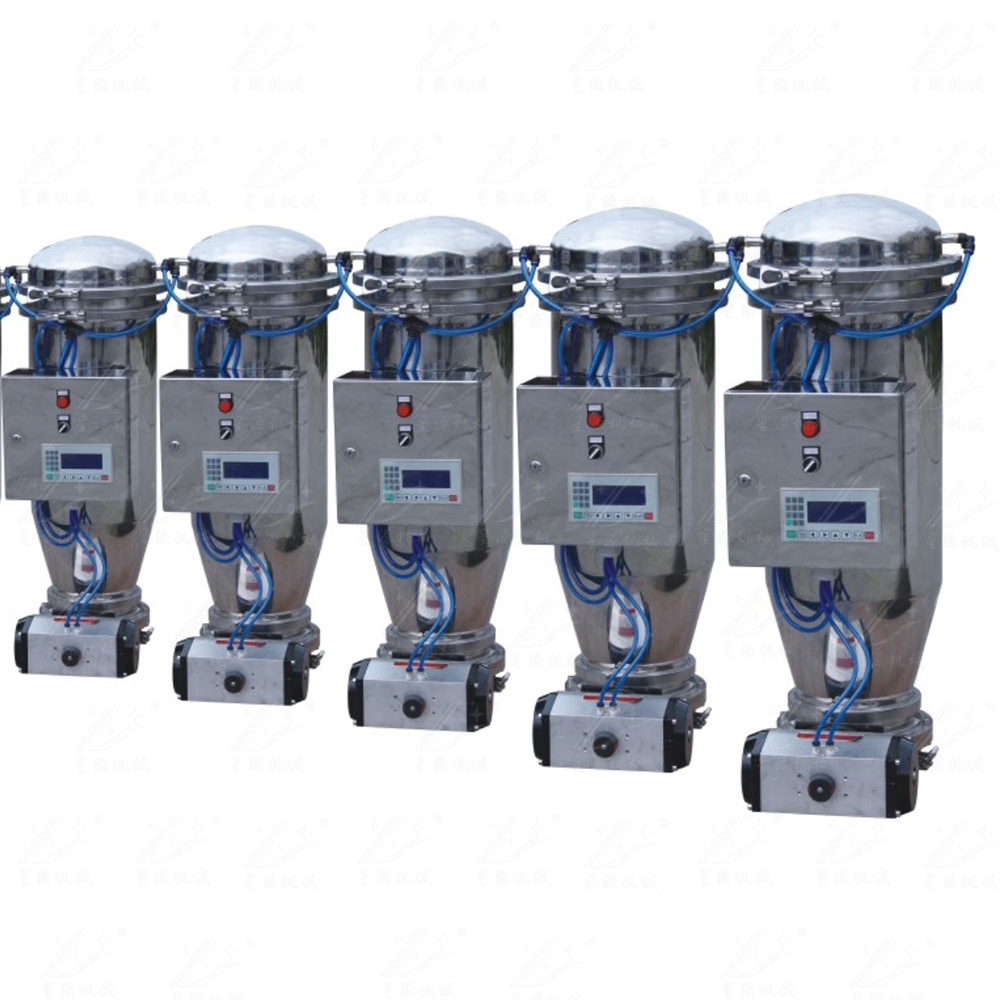

Vacuum conveyor is the core part of Vacuum Conveying system, its performance directly determineefficiency of conveying system. Working principle of standard Vacuum conveyor as below:A Vacuum generator, B outlet valve, C container inlet, D conveying pipe, E Inlet station, F filterseparator, G back flushing equipment, H controlling system

WORKING PRINCIPLE

■ Jet Vacuum ejector A generates Vacuum by compressed air

■ Bottom valve B closed, Vacuum formed in container C and transportation pipeline D.

■ Raw material is adsorbed into transportation pipeline from inlet E, then enter container.

■ Fiter Fis used for gas-solid separation that preventing dust and fine particle from being adsorbed into Vacuum ejector and internal environment.

■ Vacuum ejector stops working when material is fuly loaded.And material is exhausted after bottom valve open.Meanwhile,Blowing Devicelaunched to clear filter.

■ System starts next working cycle when ejector restart. Time of absorbing and discharging material can be pneumatically or electrically controlled.

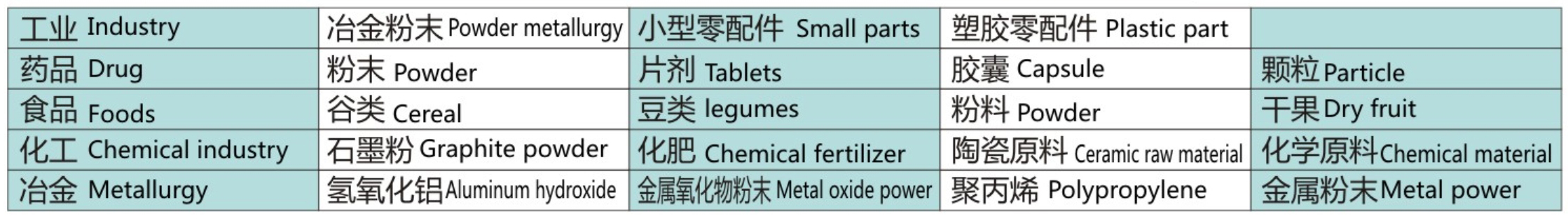

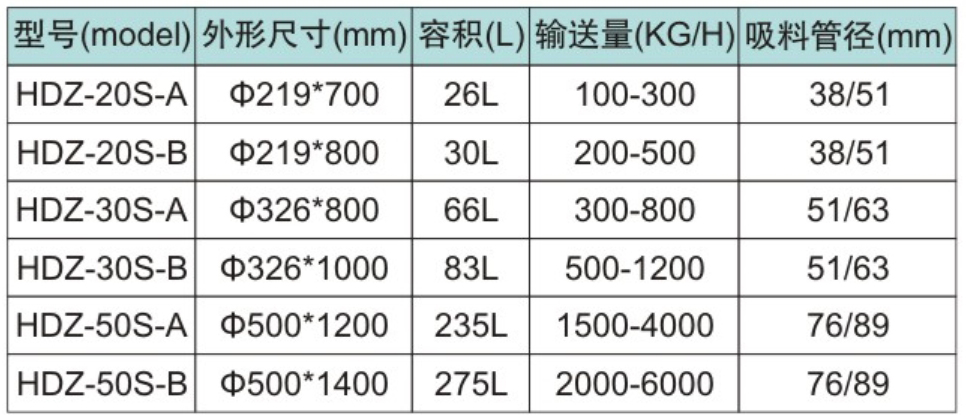

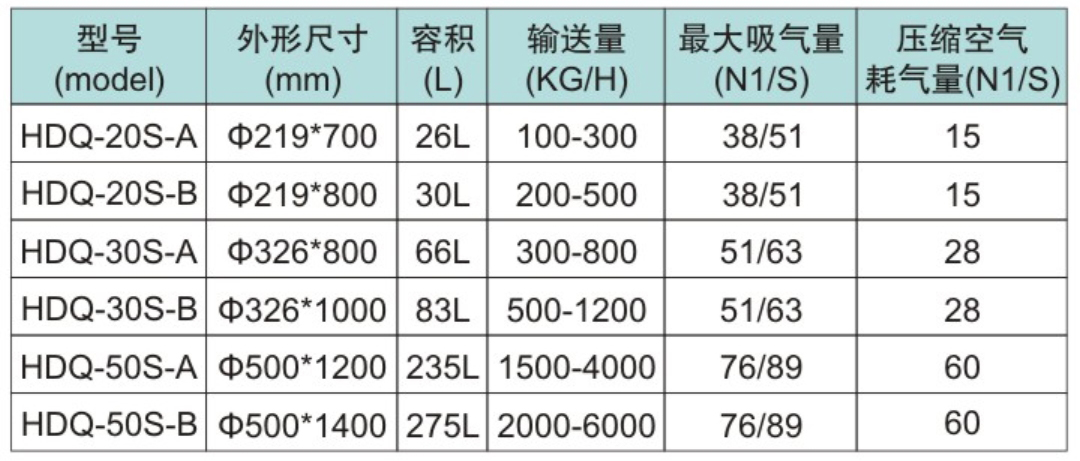

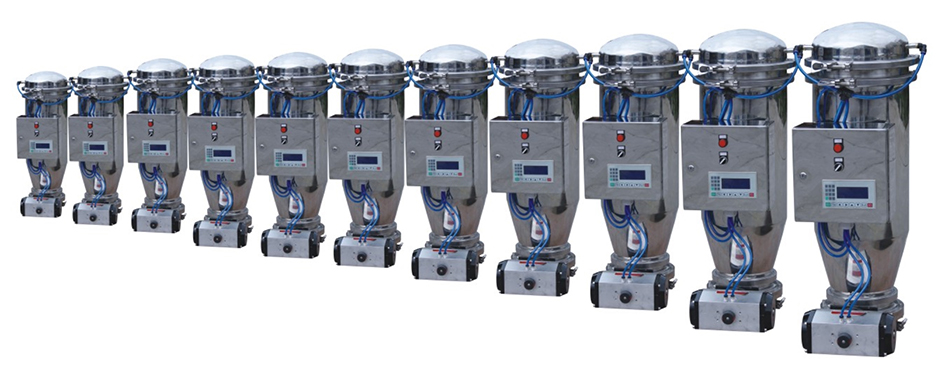

       Vacuum Conveying System is mainly used to delivery powder and particulate matter, like medical powder mixture, chemicalpowder, metal oxide powder, free-flowing dynamite, capsule, tablets, pill and so on. By now,more and more pharmaceutical industry.foods industry, chemical industry in the world adopts such delivery and burdening method for its convenience, safety,neatness andenergy-saving. Material unsuited to convey:wettish, lumpy,overlight or overweight.
